UI Basics

Get familiar with the UI basic elements of the iPad app version. The following topics are covered:

Main Menu

Main Menu is the list of objects and modules that are available for the current user. The set of items in the list can be configured in CT Mobile Control Panel.

  • Tap a menu item to display the information on the main screen. Tapping an object or module without the records list (e.g., Home or Settings)will keep the main menu intact. Tapping an object or module with a records list replaces the main menu with the records list.

  • Display or hide the information by tapping the 25 icon.

    If a module has only the main menu tooltips, the hamburger opens and hides them. If an object has a list of records, tapping the hamburger covers it with main menu tooltips.

  • On a screen with an opened list of records, swipe the main menu icons to the right to display the main menu tooltips. To go to the module or object, click whether an icon or a tooltip.

ui basics account

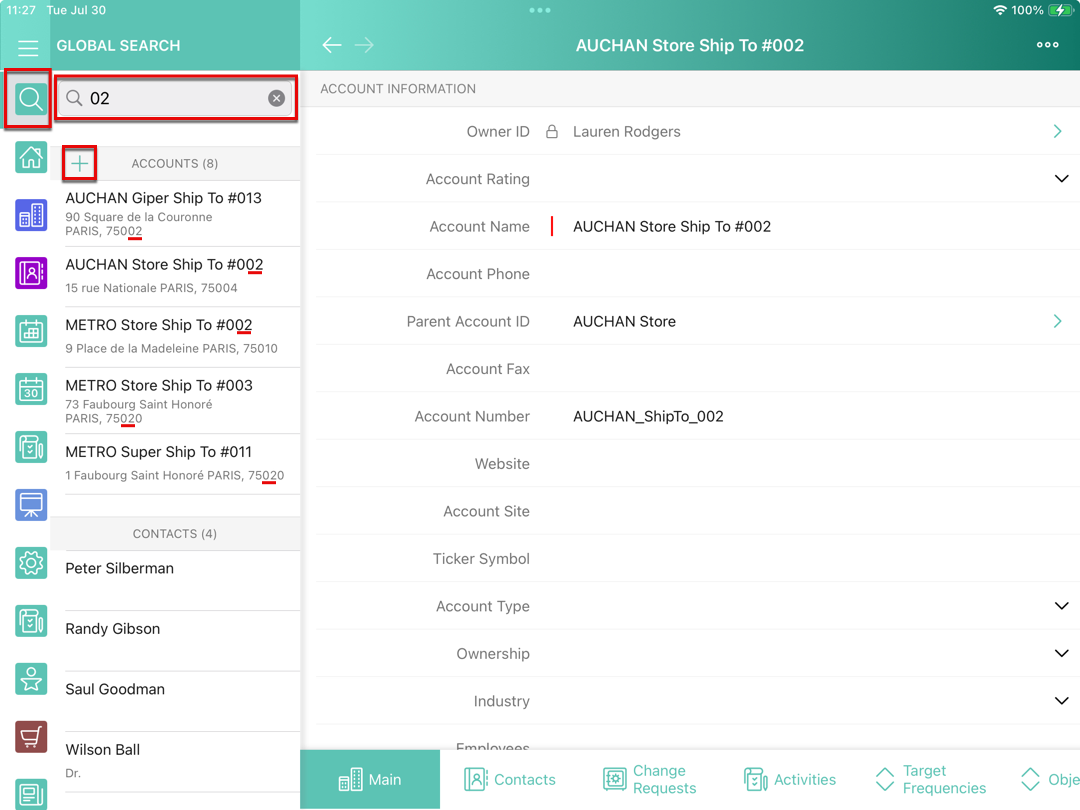

Global Search

Global Search allows finding any available for the current user record loaded to the device.

  • Tap the Global search field or 25: type in some symbols as search criteria and tap Search.

  • The search results are grouped by objects.

  • Tap 25 to expand the records list of an object.

global search

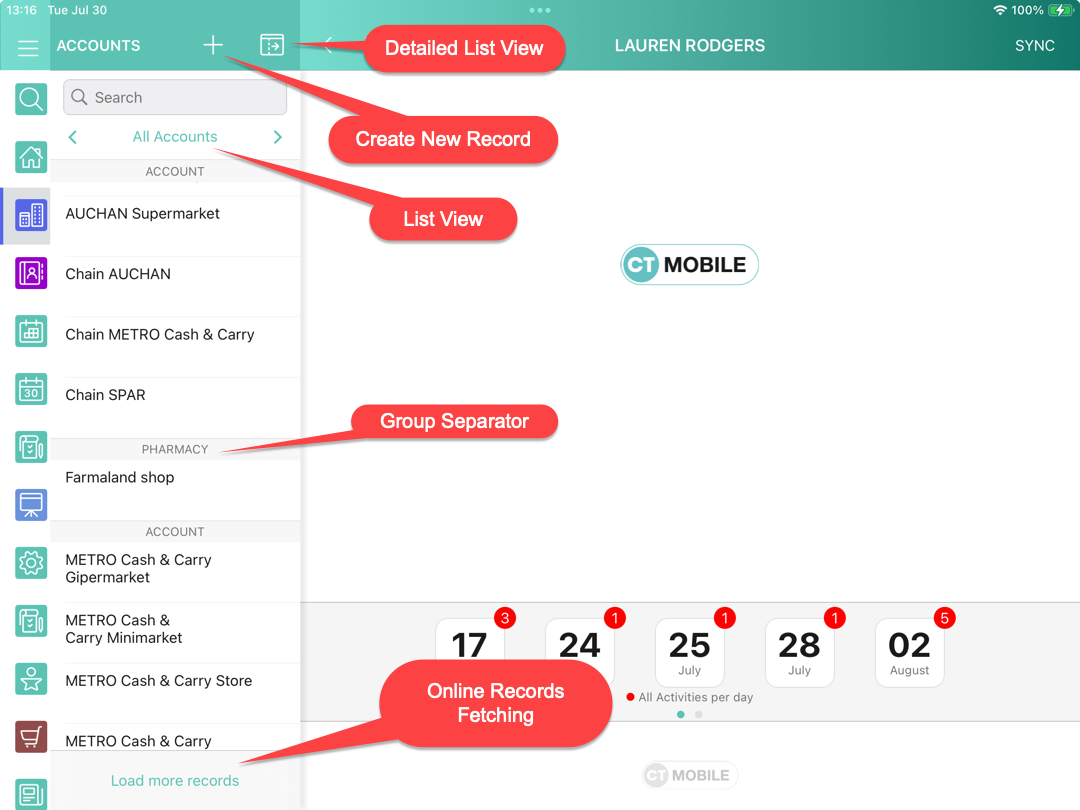

Records List

Records List contains all the selected object’s records that are uploaded to a device and matched by the selected filter.

  • Depending on the selected object, the records can be grouped by their field (e.g., name, date, etc.). You can customize the grouping of the records.

  • Records can be marked with custom colors.

  • Use Search to find a record in the current list.

  • Select a list view with 58835661 and 58835660 or tap the current list view name to open the filter.

  • Tap 25 to create a new record, if the current user has permission to create records.

  • If there is a setting in CT Mobile, tap Load more records to open the online records loading screen.

  • Tap 25 to open the Detailed List View with records in a tabular representation.

ui basics records list

Detailed List View

A detailed list view is the representation of the records as the Salesforce table in the mobile application. Tap 25 to open it.

  • Select a list view with 58835661 and 58835660 or tap the current list view name to open the filter.

  • Tap 25 to create a new record, if the current user has permission to create records.

    Currently, the configured mini-layout is required for correctly creating a record in the detailed list view.

  • Swipe a record to the left to delete it, if the current user has permission to delete records.

  • Use Search to find a record.

  • Tap Cancel to go back to the left menu with the records list.

  • Tap a record to open the record details screen.

66364327

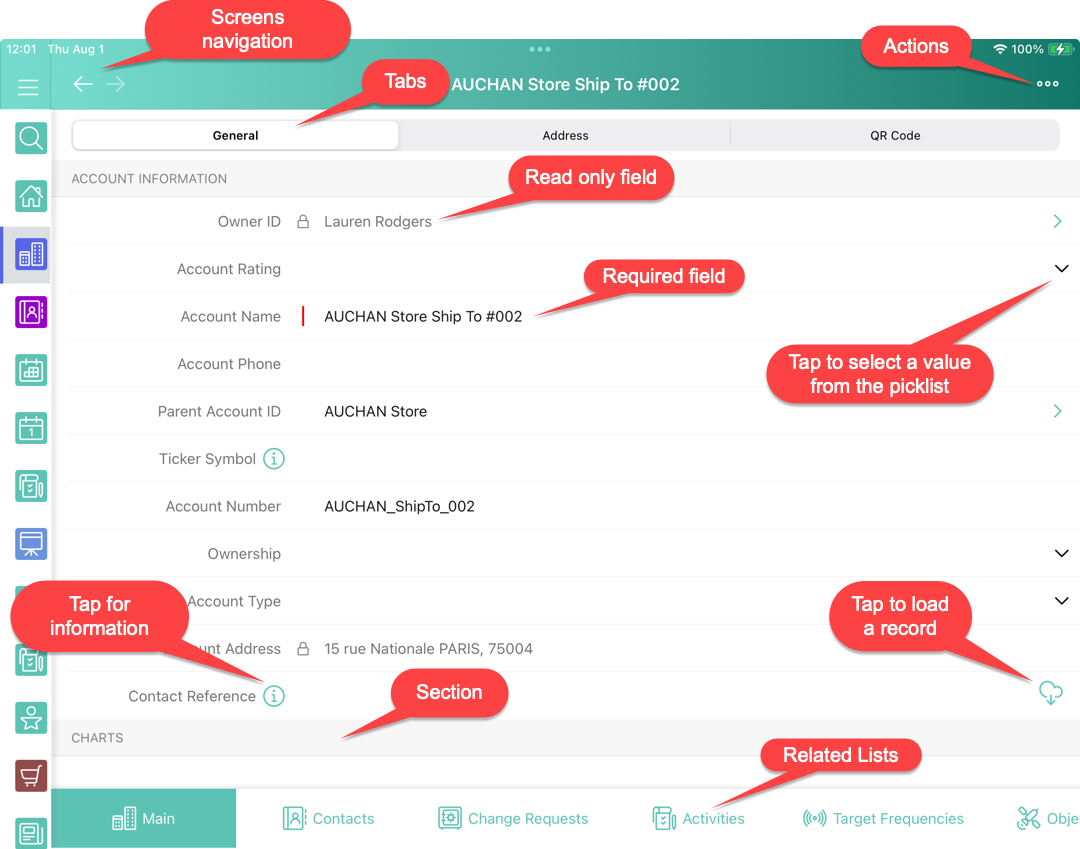

Record Details

The record details screen displays the complete information of the selected record. It consists of fields of different types, switches, widgets, and related lists. The information can be organized and separated into tabs and sections.

  • All user changes will be saved and uploaded to Salesforce via synchronization.

  • Tap 25 or 25 to navigate the screens back and forward.

  • Tap and hold 25 or 25 to open the Back / Forward screens timeline and select a screen from the list.

  • Tap 25 to open the Actions modal window.

  • If a help text added for the field, tap the 25 icon next to this field to see the help text.

  • If the Online One Record Fetching is enabled for a reference field, tap25 next to this field to load its value.

record details
``
