Remote Detailing 2.0: UI for Participants

Table of Contents

Available since CT Mobile package 3.63.

Participants can view the remote CLM presentations on their PC, tablet, or mobile phone. The supported browser list is available here.

Join the Remote Detailing session

To join the meeting:

Click the invitation link to join the CLM presentation.

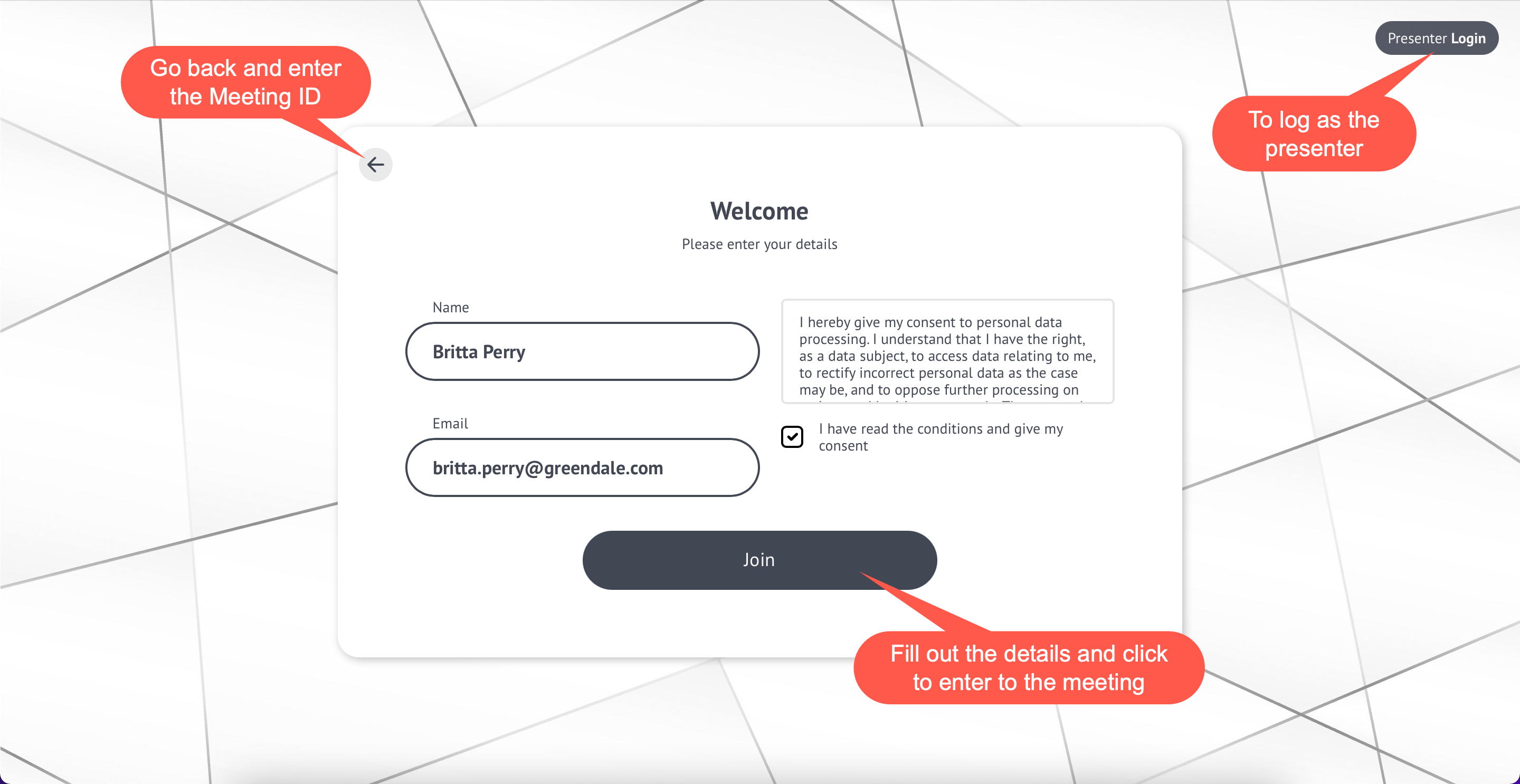

Enter your username and e-mail and click Join.
- If specified, a participant should agree with the Terms of Use.
- An email address may be required.
- If a participant has ever joined the meeting in this browser, they can join the meeting with no need to enter details.

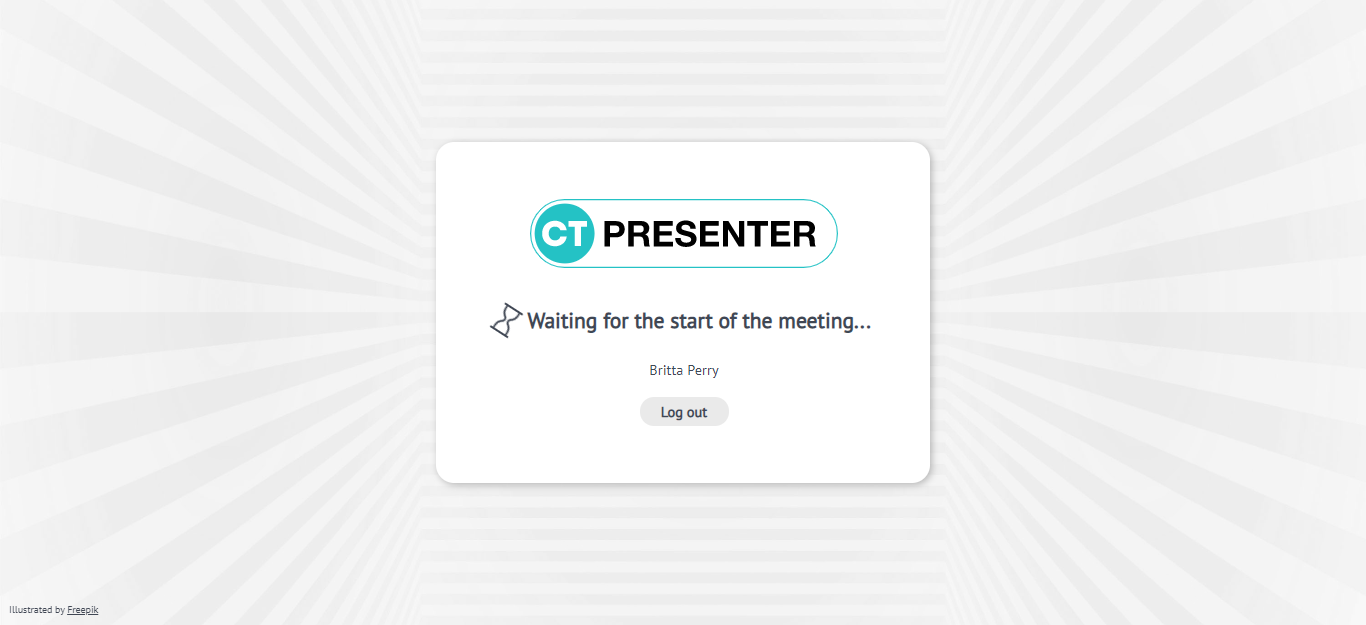

If the presenter did not start the Remote Detailing meeting, the Waiting… screen is displayed.

When the presenter joined, participants will be redirected to the Remote Detailing meeting.

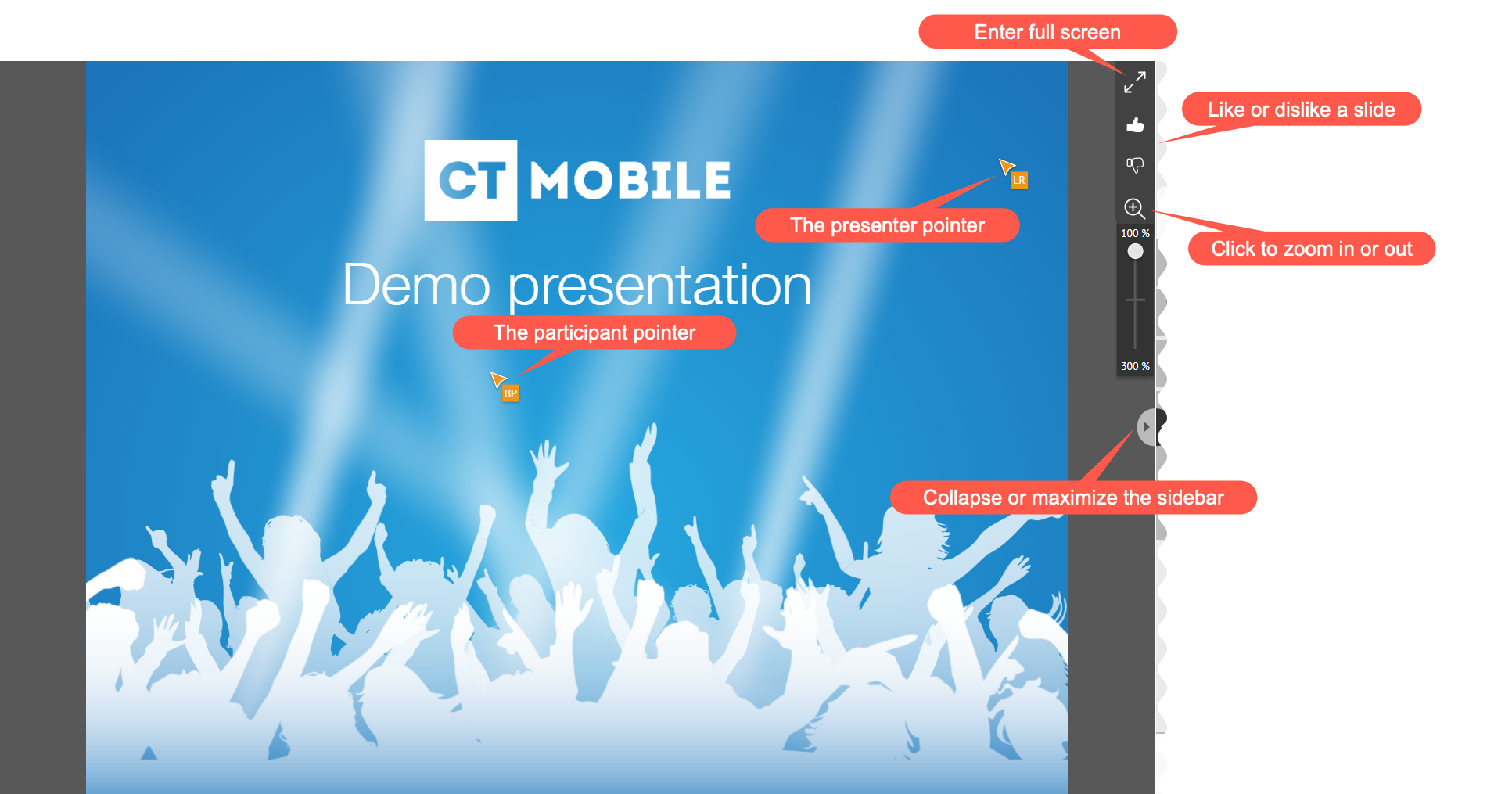

When the meeting starts:

Zoom in or out a slide for a comfortable view or with the pinch gesture on tablets.
Enter full-screen mode.
Collapse the sidebar with the participants or maximize it.
Like or dislike slide.

The Track slide likes/dislikes option should be enabled on the CLM presentation record and the presenter should allow like/dislike for participants.
If the presenter allowed the remote control for the participant, the participant can interact with slides and use JS Bridge methods.
- The participant pointer is displayed for all participants.
- The slide navigation bar and the ability to select a CLM presentation are disabled for participants.

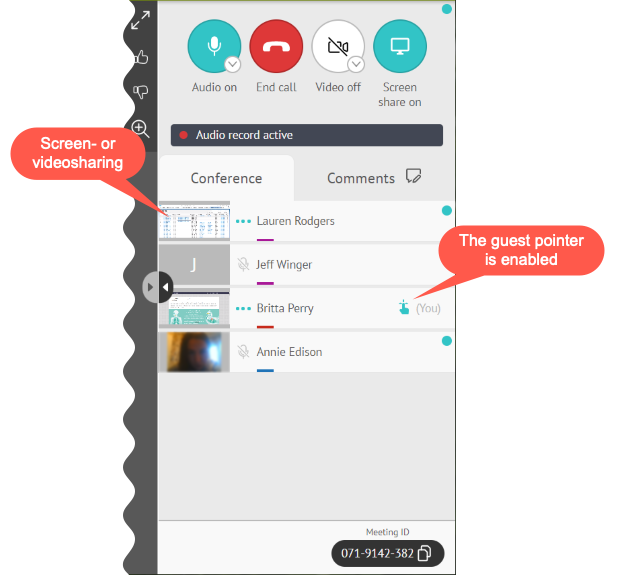

The sidebar has the Conference tab to view participants and available actions.

Click Meeting ID in the bottom right corner to copy the Meeting ID and share it if needed.
When participants join or leave a meeting or a new comment appears, the corresponding pop-up will be shown in the lower-right corner.

If specified in the CT Mobile Control Panel: Presenter / CT Mobile Control Panel 2.0: Remote Detailing, the Comments tab will be displayed and all users can leave a comment. The red dot indicated the unread messages.

If audio is recording, the warning is displayed.

Audio/Video On/Off

Click to enable the microphone and camera if video streaming is allowed in the CT Mobile Control Panel: Presenter / CT Mobile Control Panel 2.0: Remote Detailing tab. The browser asks permission if it has not been granted yet.
Click the arrow next to the microphone or camera button to select the desired device if applied.

Screen Share On/Off

Click to start sharing the screen and select what to share. By default, the screen will be shared in the sidebar next to the participant instead of a video if the video is turned on.
If the presenter clicks the Video out of focus button next to a participant in the sidebar, the participant’s screen or video will be shared on the main screen instead of the current CLM presentation slide. The CLM presentation will continue to broadcast next to the presenter in the Conference tab.
Click the video/screen sharing window to zoom it out in the Conference tab.

End Call

Click to leave the meeting. If call repeat is allowed in the CT Mobile Control Panel: Presenter / CT Mobile Control Panel 2.0: Remote Detailing tab, you can join it again.

RD Participant mode 2

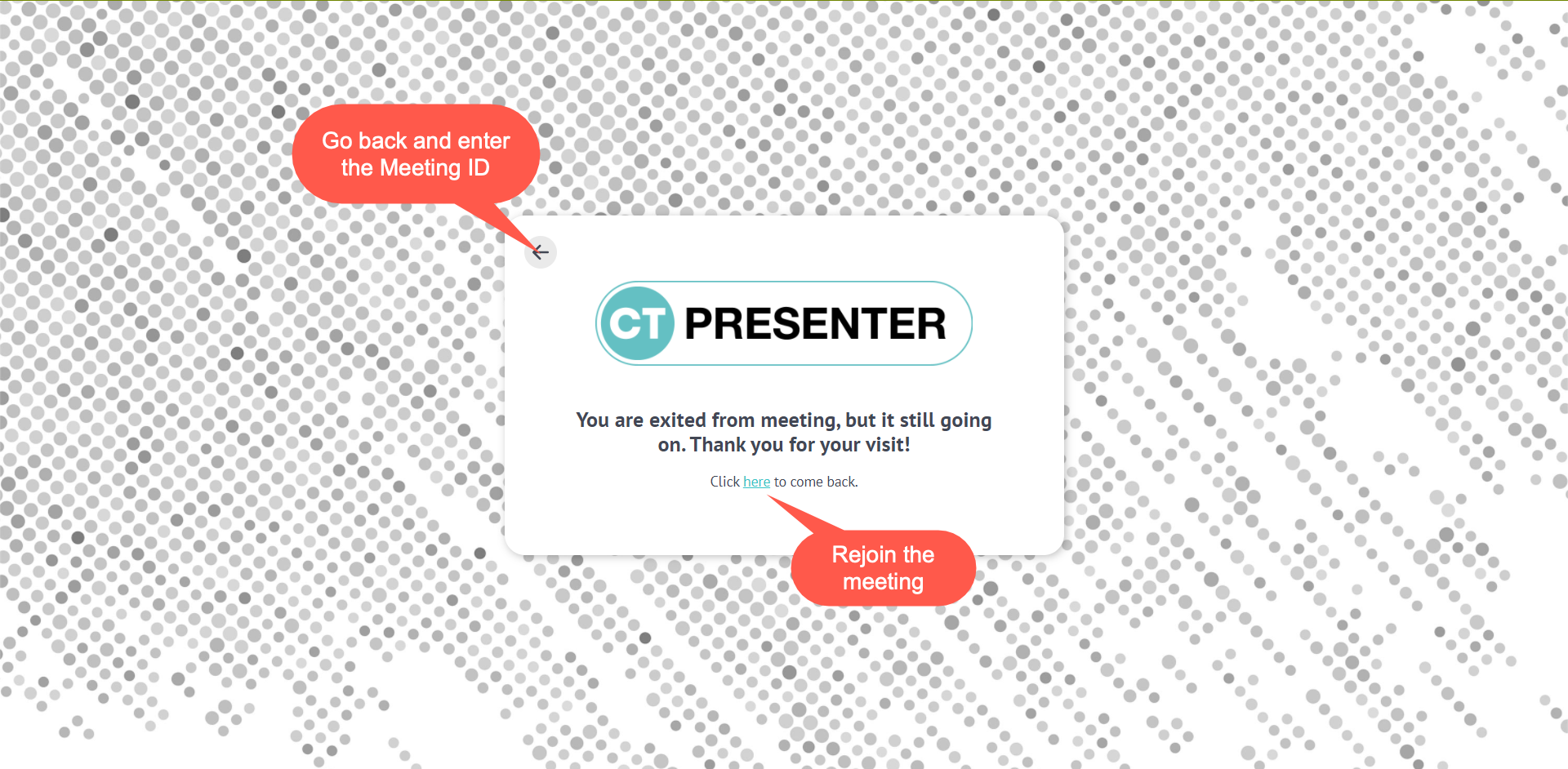

Click End call to leave the meeting. If the meeting is still on, you can rejoin it.

When the Session Timeout option is set up in the CT Mobile Control Panel: Presenter / CT Mobile Control Panel 2.0: Remote Detailing tab and the Presenter is out of the meeting for more than the specified time, participants will be automatically logged out.

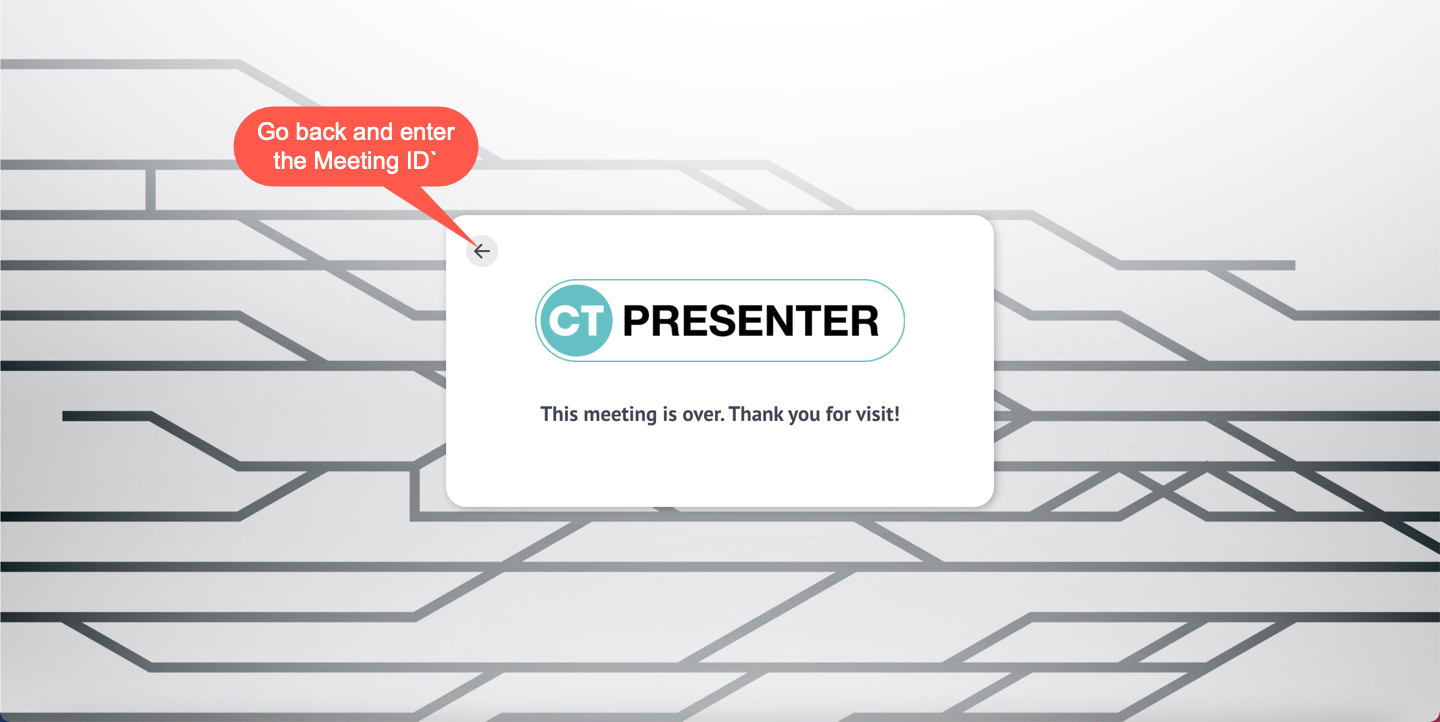

If the Presenter finishes the meeting, participants will be automatically logged out.

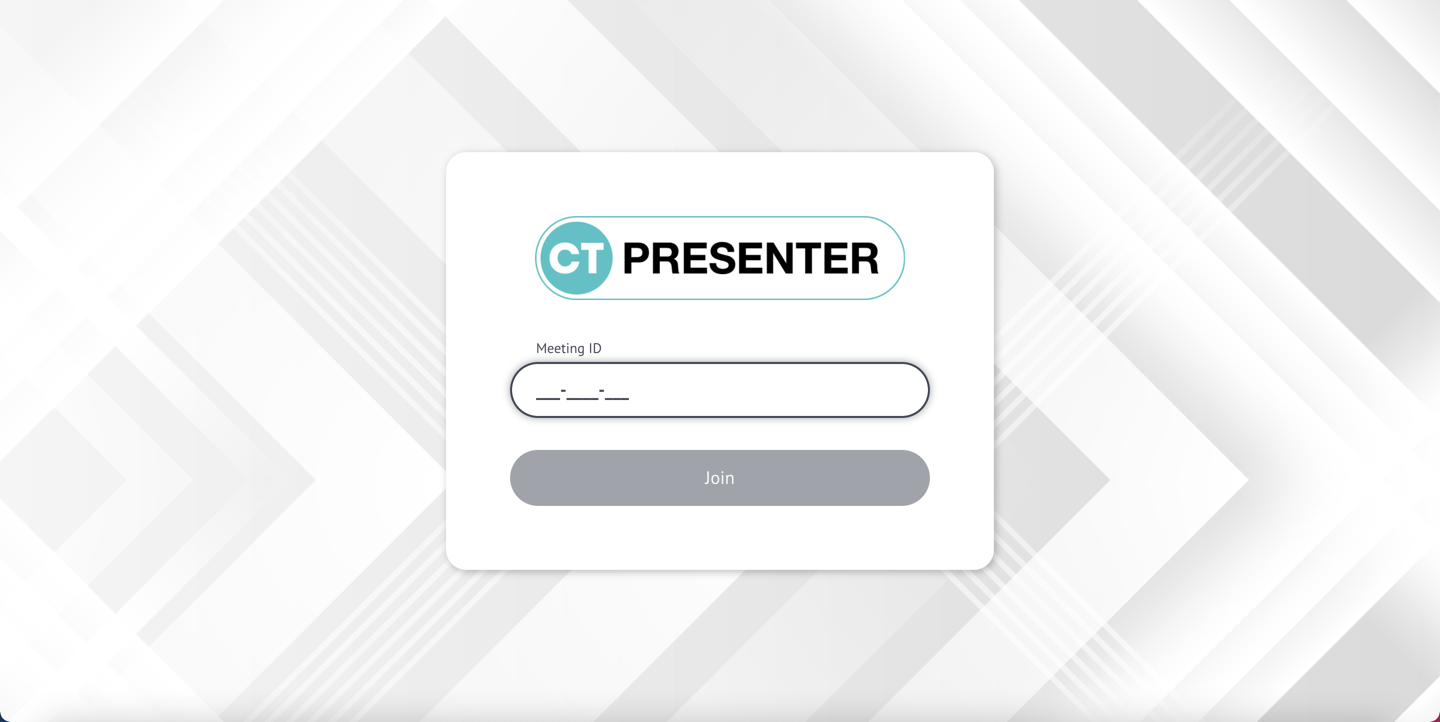

You can enter the Meeting ID and join as a participant in another Remote Detailing meeting.
