The sources.zip Structure

Each CLM presentation has sources—a variety of content and assets:

  • media, such as images, GIFs, video, and audio

  • attached files, such as .pdf, .doc(x), etc.

  • styles and fonts

  • JSONs and JS methods.

Content and associated CLM presentation assets must be packed in ZIP archive(s) in order to load them to Salesforce.

  • The size of a ZIP archive cannot exceed 25 MB. Otherwise, it must be split into several ZIP archives.

  • The file extension must be .zip.

  • The available formats: sources[n].zip, where [n] is the number of the archive part, starting from 1.

  • You can use the 7-Zip utility to create and divide ZIP archives into parts less than 25 MB. In this case, the output format will be sources.zip.00[n], where [n] is the number of the archive part, starting from 1. Select the ZIP format when creating an archive.

  • The ZIP archive may contain folders and subfolders.

    Do not create a ZIP archive with the Sources folder that include folders with images, video, etc. The sources/images/image-1.jpg path will not be handled.

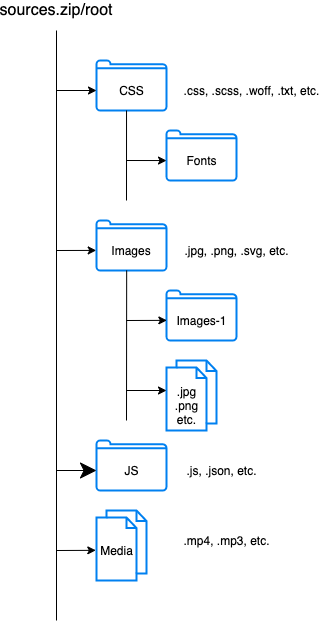

The sources.zip structure:

ctpresenter sources structure
``
