CT Mobile Control Panel 2.0: User Interface

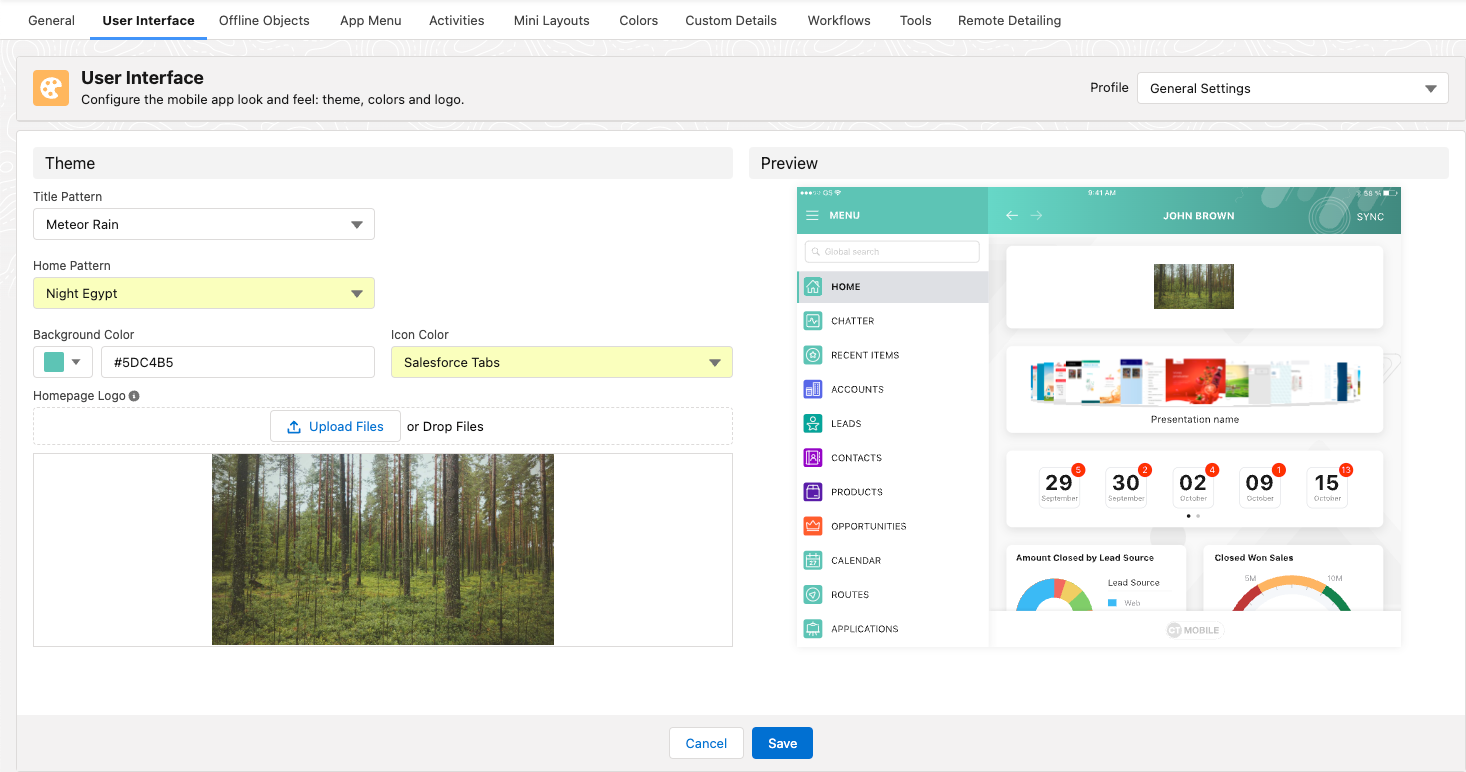

The User Interface tab allows configuring the application appearance overall, being applied to headings, menu items, etc. Configure settings on the Theme section and view the changes on the Preview section.
Title Pattern
Select the title pattern from the picklist to add a pattern to the header of the mobile application. The changes will be represented on the landscape view.
Home Pattern
Select the home pattern from the picklist to add a pattern to the background of the mobile application screen. The changes will be represented on the landscape view.
Background Color
Click on the field to select a color from the drop-down palette, or enter the color code.
Icon Color
| This functionality will be available in the future releases of the CT Mobile Control Panel. |
Select between monochrome (Device Background) or colorful (Salesforce Tabs) icons on the app menu.
| To configure color for Salesforce tabs, go to Setup → User Interface → Tabs. |
Homepage Logo
The logo is represented on the Home screen if the Logo widget is added. Click Choose file to add a new logo.
-
The logo file size limit is 4 MB.
-
The file format is limited to PNG. The logo will be saved in the following format:
-
For General Settings profile: Mobile.Logo.png.
-
For a user profile: Mobile.Logo_{profile.id}.png.
-
-
Large images will be automatically resized.
-
To view the logo in Salesforce, switch Lightning Experience to Salesforce Classic, go to Documents and open the CT CLM folder.
You can configure your Home screen to relocate the logo or change its size. After that, launch the fast synchronization.
Click Save to apply new settings.
