CG Cloud Object Model

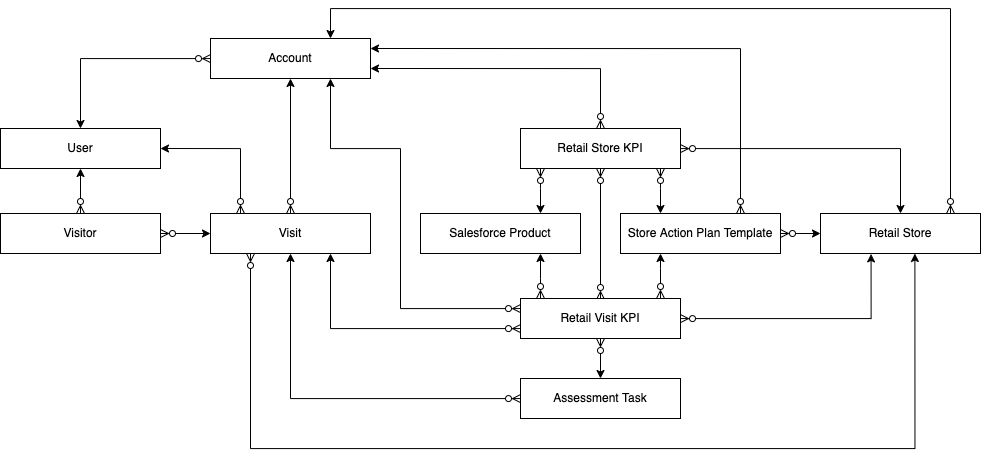

This scheme gives you a basic understanding of CG Cloud objects and relationships when working with the CT Mobile app.

Here are the main objects and relationships. The list of all required components is available here.

Click the link to view the field reference for the selected object.

Object	Object API Name	Description
Account	Account	Each retail store should be related to the Account record.
Assessment Task	AssessmentTask	Represents tasks based on the selected action template to be performed during the visit to the retail store. Available values: Inventory Сheck Promotion Сheck In-store Survey Planogram Check Place Order Other Task
Product	Product2	Represents a product that your org sells.
Retail Store	RetailStore	Represents a retail store.
Retail Store KPI	RetailStoreKpi	Represents the target values to be achieved during a visit to a retail store.
Retail Visit KPI	RetailVisitKpi	During a visit, it is used to capture the actual information against the target values.
Store Action Plan Template	StoreActionPlanTemplate	Based on the selected Action Plan record, represents the association of the action plan template to the store.
Visit	Visit	Represents a rep’s visit related to the retail store. Available values of the Visit statuses: Planned In Progress Abandoned Completed
Visitor	Visitor	Represents a sales rep.
User	User	Each visitor should be related to the User record.

Object

Object API Name

Description

Account

Each retail store should be related to the Account record.

AssessmentTask

Represents tasks based on the selected action template to be performed during the visit to the retail store. Available values:
