Requirements and Media File Formats

There is a list of requirements and media file formats for CLM presentations:

Common Recommendations

Consider the quantity and image quality of the media assets to ensure the CT Mobile app responds quickly, and the user does not wait long during the synchronization.

  • The CLM presentation aspect ratio should depend on the screens of the mobile device to display, mostly it is 16:9 or 4:3.

  • Use media according to the resolution of the target device.

HTML5 can handle large files, but you should make sure that these files do not use all the memory of a mobile device. Otherwise, CT Mobile may crash while displaying the content or soon after returning to the rest of CT Mobile functionality.

  • XML parsing within HTML5, while it may be technically possible, has been known to use up all the memory.

  • We recommend testing the display of HTML5 content and interactions with it repeatedly to ensure memory issues will not occur. However, memory warnings may appear in the device log to identify possible memory issues, although not every time.

  • For long-format, like reports and articles, we recommend using PDF that may be converted into HTML5 code.

  • For short-format media, HTML5 will provide a better navigation experience, more accurate reporting, and interactivity.

  • Also, it is possible to convert .ppt(x) or JPG/JPEG into HTML5 code with slide snapshots (degraded resolution is used to optimize image/file size).

We recommend that you consider default gestures when implementing custom actions. For example, do not override the two-finger swipe that is used to switch slides in a scenario. Or do not implement custom action by double-tapping the sides of a screen because this gesture calls out the navigation bar or the standard action menu.

  • Adobe Flash is not supported.

  • Do not name methods as the top-level domains. For example, if the .to method is used in the class on the slide markup, the classname.to will be interpreted as the link.

Recommended Media Formats

Type

Extension

Recommended Size

Display (on Mobile Device)

Additional Guidelines

HTML5

  • .html

  • .htm

  • 13 000 symbols per slide

  • 2 MB

Fullscreen in the landscape view

  • Support files such as HTML, CSS, images, video, and PDF are stored in multiple folders.

  • Media included with the HTML should be referenced using relative paths, like /css/styles.css rather than http://server.com/css/styles.css.

  • Default gestures to switch and interact with slides are supported.

Video

  • .mp4

  • .m4v

  • .mov

  • .avi

10 MB per video 60 seconds long

  • Fullscreen in landscape view

  • Small video can be scaled to the full screen

  • H.264 MPEG4 is recommended.

  • Large files increase the battery use of the device during syncing: using the highest level of video compression that creates the desired effect is strongly recommended.

Images

  • .jpg

  • .png

The minimum resolution is 1024x768 for landscape view

PDF

  • 2.5 MB per 10 pages with images

  • 2.5 MB per 50 pages with text

  • not more than 75 MB

  • Fullscreen in landscape view

  • Small video can be scaled to the full screen

  • Scroll vertically

  • In the current version of CT Presenter, PDFs are displayed only as attachments on mobile devices.

  • Do not insert any fields or forms in PDF files.

  • If a PDF file contains any interactive elements, such as videos, gifs, and links, they will not be available in the converted CLM presentation.

  • Do not use the & symbol in the PDF file name, otherwise the presentation will not be loaded.

PPT

not more than 75 MB

  • Embed fonts in a CLM presentation to be sure that the fonts, special characters, layout, and styling of the document won’t change while sharing.

  • If a .ppt(x) file contains any interactive elements, such as videos, gifs, and links, they will not be available in the converted CLM presentation.

  • Slides animation from converted .ppt files is not supported.

  • Violation of converted slides' proportion is possible when other than iPad format slides are used in the source document.

ZIP

.zip

  • not more than 73 MB

  • not more than 200 slides

  • The ZIP file structure must not contain subdirectories.

  • Slides must be located in the root directory.

  • Do not use the & symbol in the ZIP file name, otherwise the presentation will not be loaded.

PDF and PowerPoint Requirements

Consider these parameters when converting CLM presentation based on .pdf or .ppt(x).

Parameter Image Size, pixels Default Rendering Quality, DPI Physical Size, in Physical Size, cm

.pdf

Width

4096

300

13.65

34.67

Height

3072

300

10.24

26.00

.ppt(x)

Width

4800

300

16

40.64

Height

3600

300

12

30.48

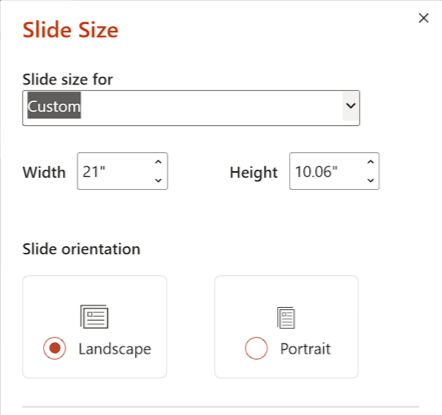

For the .ppt(x) format, these parameters mean the slide size:

pptx size

The slide size for the .ppt(x) format was tested and is recommended as a workable value. Presentations with other sizes of .ppt(x) slides may not work properly.

Video in CLM presentations

  • The link should have the following format https://www.youtube.com/embed/GhpE_7cBu44.

  • We suggest you upload videos to YouTube by selecting the Unlisted value in the Visibility option to avoid public dissemination.

  • During synchronization, the CT Mobile app downloads the video into its local repository for offline access. The code for correct video insertion in slide markup:

<iframe class="youtube-player" type="text/html" width="643" height="402" src="https://www.youtube.com/embed/GhpE_7cBu44?autohide=1&autoplay=1" frameborder="0" id="player">
</iframe>

Links in CLM presentations

To open a link in the CLM presentation, the link should be as https://www.google.com/, for example:

<a class="button brown" href="https://www.google.com/">link</a>

Required JS Resources

The following JS library should be represented in the <head> tag of each slide.

<script type="text/javascript" src="../JSLibrary/js/app.js"></script>

The following scripts and styles should also be specified in the <head> tag of a slide for editing via Application Editor.

<script type="text/javascript" src="../JSLibrary/js/jquery-1.8.2.min.js"></script>
<script type="text/javascript" src="../JSLibrary/js/jquery.jqChart.min.js"></script>
<script type="text/javascript" src="../JSLibrary/js/jquery.jqRangeSlider.min.js"></script>
<script type="text/javascript" src="../JSLibrary/js/jquery-ui-1.9.1.min.js"></script>
<script type="text/javascript" src="../JSLibrary/js/jquery.ui.touch-punch.min.js"></script>

<link rel="stylesheet" type="text/css" href="../JSLibrary/css/jquery.jqChart.css"/>
<link rel="stylesheet" type="text/css" href="../JSLibrary/css/jquery.jqRangeSlider.css"/>
<link rel="stylesheet" type="text/css" href="../JSLibrary/themes/redmond/jquery-ui.css"/>
<link rel="stylesheet" type="text/css" href="../JSLibrary/css/jquery-ui-1.9.1.min.css"/>
``
