CLM Presentation Components

Application

A set of HTML slides representing the logic of the CLM presentation. Slides are formed on templates and have a variable area for multiple use cases. Users can create custom scenarios based on the default scenario.

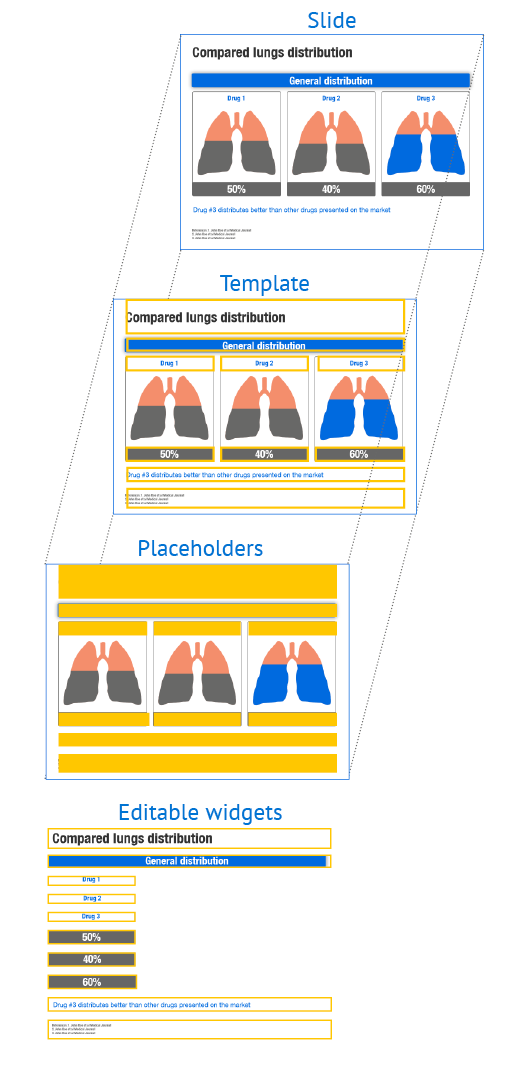

Slide

A CLM presentation page with a unique index number.

The existence of two slides with equal index numbers within one CLM presentation is not permitted.

  • The Required attribute prevents mobile users from displacing or removing the slide from the scenario.

  • The Fixed attribute disables slide scrolling using a double swipe.

    The attribute use is recommended to be set to the slides that represent the menu.

Template

An HTML layout with placeholders. Templates support an unlimited number of placeholders. Multiple slides of the same CLM presentation can use the same template.

Placeholder

An HTML layout field that indicates a place for interactive widget content storage. It is possible to set up the type of supported widgets in the placeholder. The placeholder position number is a required parameter. Placeholders are marked as {!POSITION_n}, where n is an ordinal integer.

Widget

A separate editable template element. The following types of widgets are currently supported:

  • Rich Text

    For changes to the HTML layout, text blocks places, and images

  • Slider

    An interactive customizable widget that can aggregate numerical values

  • Chart

    An interactive diagram widget

  • Sortable

    An interactive sorting widget

  • Video

    A widget for inserting a video into a slide

    YouTube video is currently supported. The video can be downloaded to the iPad to be available in offline mode.

All types are managed using the Application Editor, excluding the Video type.

Additional objects

Application Stats

The object is intended to store the CLM presentation statistics from the Application module, Home Screen, and a record’s mobile layout.

Custom Scenario

The object is intended to store user scenarios for CLM presentations.

Activity

The object is intended to record all details, e.g., the company’s products, of different types of user visits.

Sync Log

The object is intended to log entries of each action during synchronization.
