9 Display Format: KPI
|
The described functionality is delivered as a snippet and is out of the standard CT Mobile solution. Please consult with your Customertimes team regarding the implementation of the functionality stated below. |
| The fields with the Formula type represent KPIs and must be created before using in this section. The section does not calculate any values by itself. |

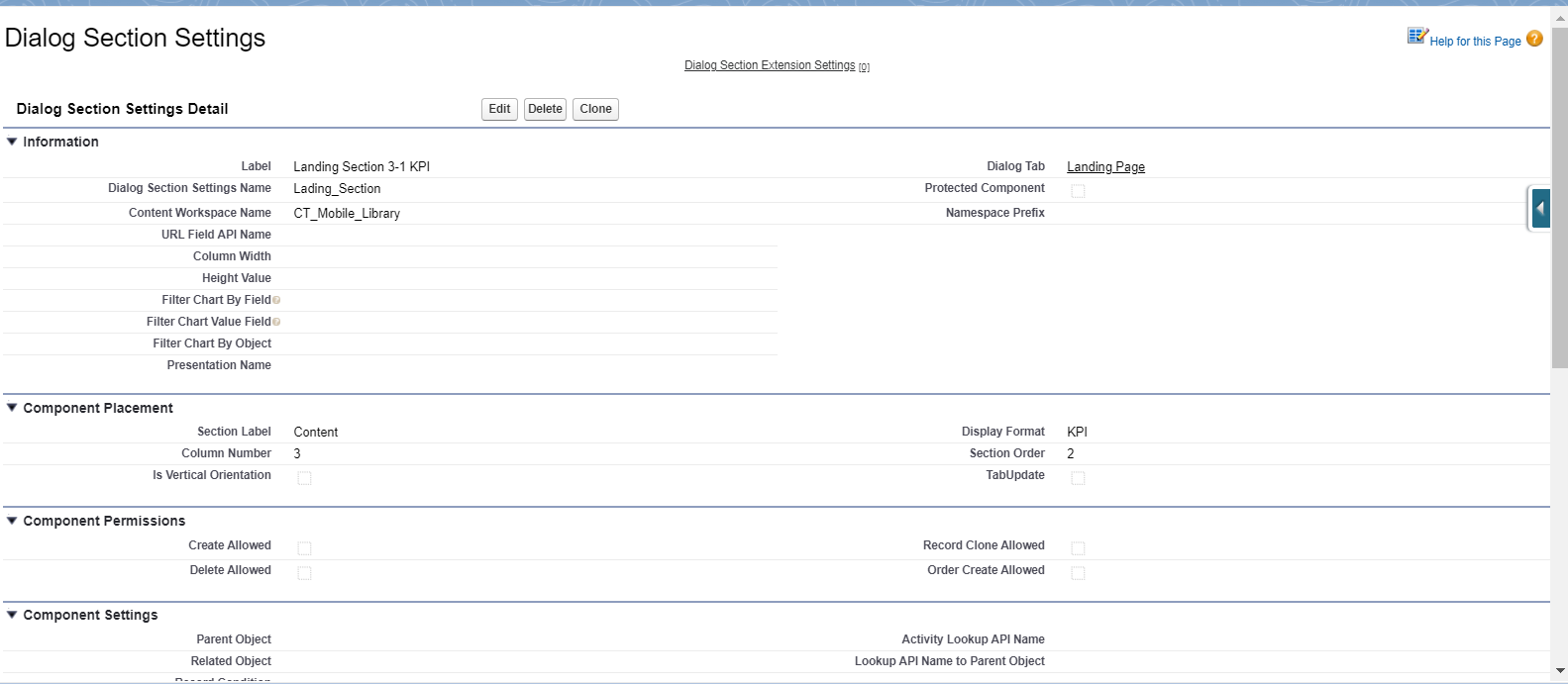

Dialog Section Settings Detail
Information
| Field | Description | Comments |
|---|---|---|
Label |
Label of the Dialog Section setting. |
|
Dialog Section Settings Name |
API name of the Dialog Section setting. |
|
Dialog Tab |
The label of the Dialog Tab setting that the tab is related to. |
Component Placement
| Field | Description | Comments |
|---|---|---|
Section Label |
Label of the Dialog Section setting that is displayed in the header of the section. |
Custom labels can be used for multilanguage projects. |
Display Format |
The format of the section. |
KPI in the example below. |
Column Number |
The column number to place a section. |
The horizontal positioning of the section. |
Section Order |
The order number of the row to place a section. |
The vertical positioning of the section. |
Is Vertical Orientation |
If selected, the fields will be oriented in a vertical position. |

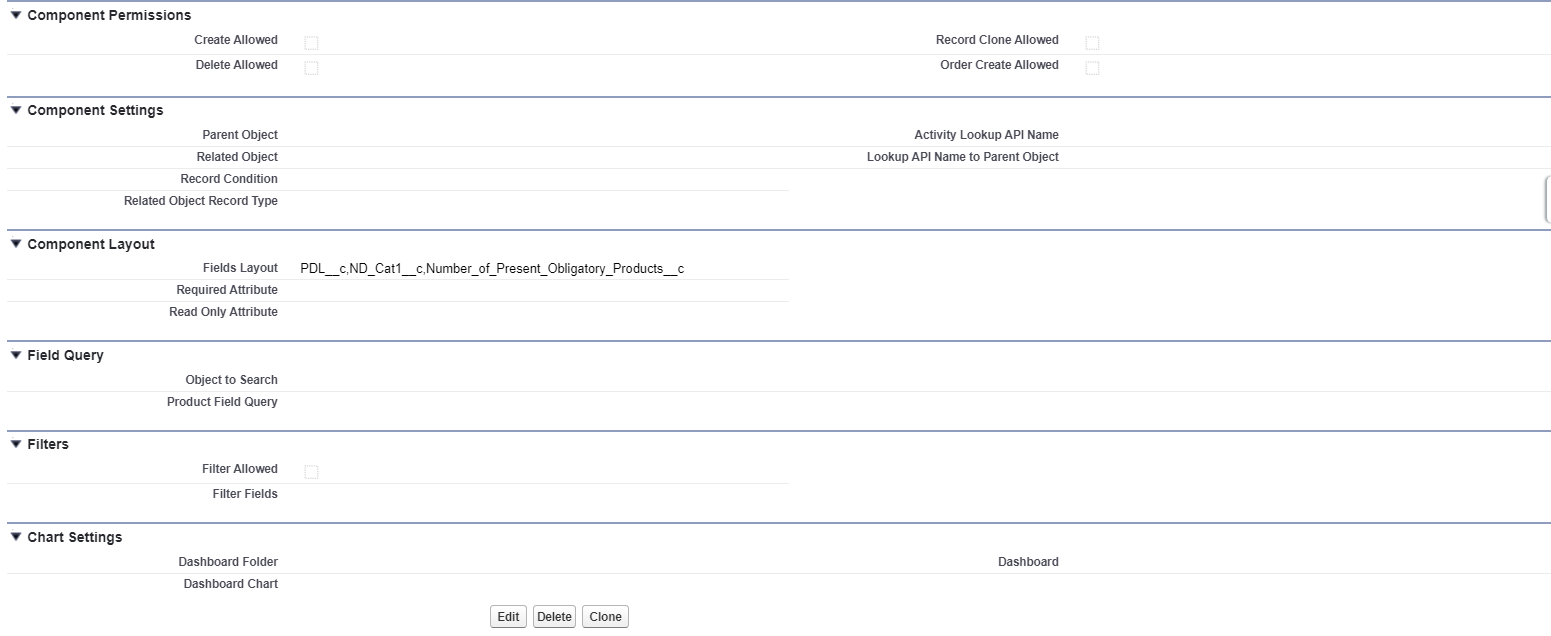

Component Settings
| The fields are shown from the current object or from the parent object. |
| Field | Description | Comments |
|---|---|---|
Parent Object |
The parent object for the current object. |
If we need the information from the current object this field is empty |
Activity Lookup API Name |
The API name of the field with the Lookup type to relate parent and current objects. |
If we need the information from the current object this field is empty. |
Related Object |
This field is empty as the related objects have many records and we need only one. |
|
Lookup API Name to Parent Object |
This field is empty as we do not use related objects in this format. |
