1 Display Format: Fields
|
The described functionality is delivered as a snippet and is out of the standard CT Mobile solution. Please consult with your Customertimes team regarding the implementation of the functionality stated below. |
Dialog Section Settings Detail
Information
| Field | Description | Comments |
|---|---|---|
Label |
Label of the Dialog Section setting. |
|
Dialog Section Settings Name |
API name of the Dialog Section setting. |
|
Dialog Tab |
The label of the Dialog Tab setting that the tab is related to. |
Component Placement
The position of the section in the tab.
| Field | Description | Comments |
|---|---|---|
Section Label |
Label of the Dialog Section setting that is displayed in the header of the section. |
Custom labels can be used for multilanguage projects. |
Display Format |
The format of the section. |
Fields in the example below. |
Column Number |
The column number to place a section. |
The horizontal positioning of the section. |
Section Order |
The order number of the row to place a section. |
The vertical positioning of the section. |
TabUpdate |
If selected, the tab will be updated in case of changes in the section. |
Update of the entire Dialog Tab. |
Component Settings
The fields are shown from the current object or from the parent object.
| Field | Description | Comments |
|---|---|---|
Parent Object |
The parent object for the current object. |
If we need the information from the current object this field is empty |
Activity Lookup API Name |
The API name of the field with the Lookup type to relate parent and current objects. |
If we need the information from the current object this field is empty. |

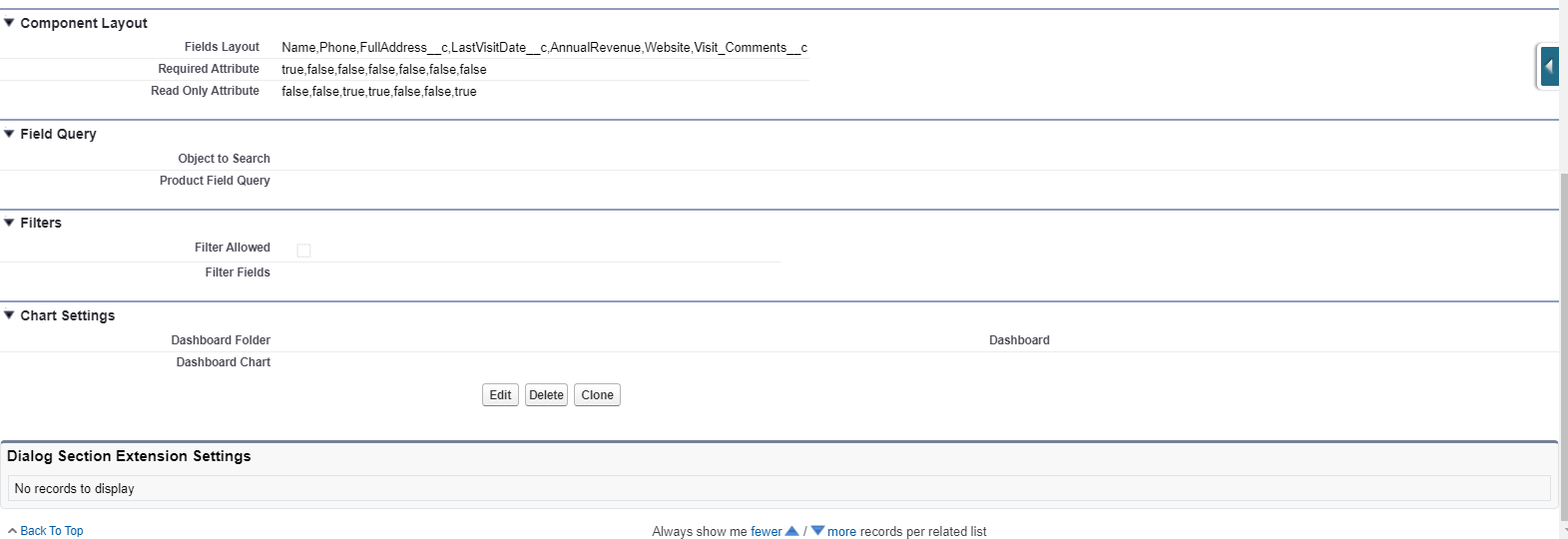

Component Layout
| Permissions cannot overcome the User Profile settings. Restrictions can become only tougher. |
| Field | Description | Comments |
|---|---|---|
Fields Layout |
The API names of the fields (columns) that must be displayed. |
Comma-separated, without blank spaces. |
Required Attribute |
If selected, the field (a column) is required. |
Comma-separated, without blank spaces, in the same order as in the Fields Layout field. |
Read Only Attribute |
If selected, the field (a column) is read-only. |
Comma-separated, without blank spaces, in the same order as in the Fields Layout field. |
