1 Display Type: Hierarchy View
|
The described functionality is delivered as a snippet and is out of the standard CT Mobile solution. Please consult with your Customertimes team regarding the implementation of the functionality stated below. |

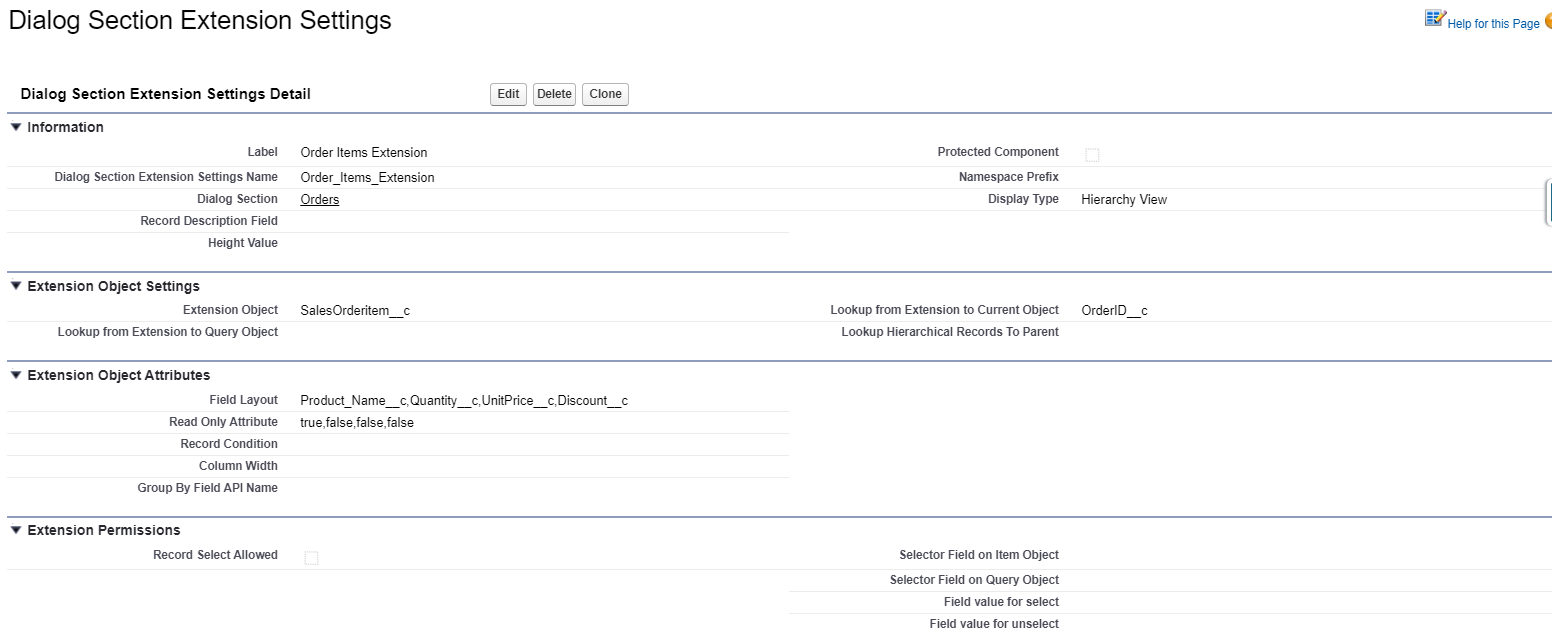

Dialog Section Extension Settings Detail
Information
| Field | Description | Comments |
|---|---|---|
Label |
Label of the Dialog Section Extension setting. |
|
Dialog Section Extension Settings Name |
API name of the Dialog Section Extension setting. |
|
Dialog Section |
The label of the Dialog Section setting that the Dialog Section extension is related to. |
|
Display Type |
The display type to define the format of the Dialog Section extension. |
Hierarchy View in the example below. |
Extension Object Settings
| Field | Description | Comments | Comments |
|---|---|---|---|
Extension Object |
API name of the object to display in the hierarchy view. |
||
Lookup from Extension to Current Object |
The API name of the field with the Lookup type is to associate the current object and the Extension Object. |
Extension Object Attributes
| Permissions cannot overcome the User Profile settings. Restrictions can become only tougher. |
| Field | Description | Comments |
|---|---|---|
Field Layout |
The API names of the fields (columns) that must be displayed. |
Comma-separated, without blank spaces. |
Required Attribute |
If selected, the field (a column) is required. |
Comma-separated, without blank spaces, in the same order as in the Fields Layout field. |
Read Only Attribute |
If selected, the field (a column) is read-only. |
Comma-separated, without blank spaces, in the same order as in the Fields Layout field. |
Column Width |
||
Group By Field API Name |
