Dialog Layout: Settings

The described functionality is delivered as a snippet and is out of the standard CT Mobile solution.

Please consult with your Customertimes team regarding the implementation of the functionality stated below.

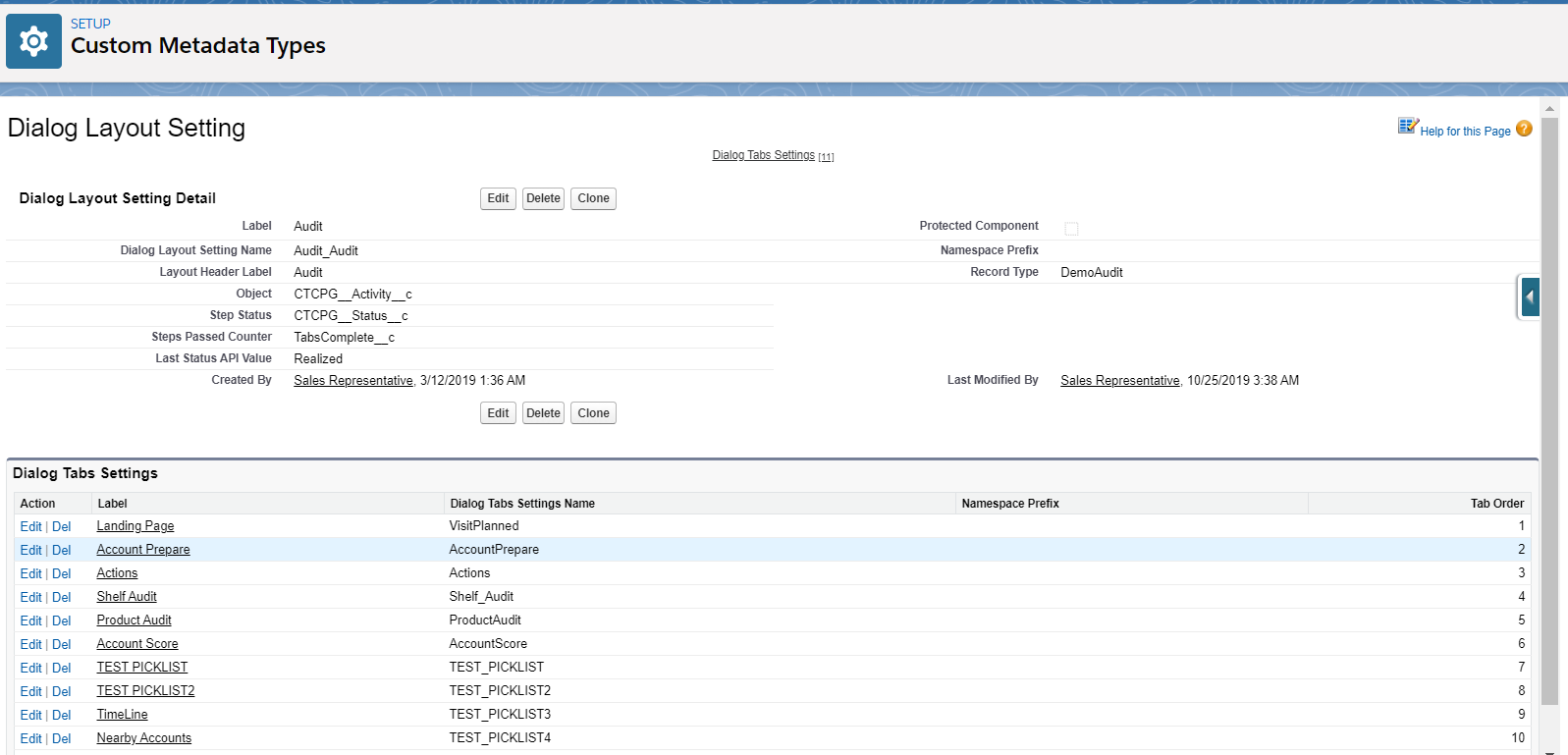

Dialog Layout Setting Detail

Field	Description	Comments	Field
Label	Label of the Dialog Layout setting.	Protected Component
Dialog Layout Setting Name	API name of the Dialog Layout setting.		Namespace prefix
Layout Header Label	Label of the Dialog Layout setting that is displayed in the header of the layout.	Custom labels can be used for multilanguage projects.
Object	API name of the object, for which the layout should be overridden.
Step Status	API name of a field with the Picklist type that stores object statuses.	Each step must be associated with the status.
Steps Passed Counter	API name of a field to count the passed steps.
Last Status API Value	The last status.	For example, Realized.

Field

Description

Comments

Field

Description

Label

Label of the Dialog Layout setting.

Protected Component

Dialog Layout Setting Name

API name of the Dialog Layout setting.

Namespace prefix

Layout Header Label

Label of the Dialog Layout setting that is displayed in the header of the layout.

Custom labels can be used for multilanguage projects.

Object

API name of the object, for which the layout should be overridden.

Step Status

API name of a field with the Picklist type that stores object statuses.

Each step must be associated with the status.

Steps Passed Counter

API name of a field to count the passed steps.

Last Status API Value

The last status.

For example, Realized.

Each tab corresponds to one separate step of the visit.

The order of the steps is defined by the Tab Order field at the Dialog Tabs Settings metadata type.
The number of the steps starts with 1.
